General description
Wire sample machines are used to produce steel wire samples to be used for laboratory purpose (for example to produce samples for the tensile test).
Wire sample machines manufactured by Promostar are single unit able to straight sample of the steel wire after the hot rolling, cold rolling or stretching process.
Wire sample machines are used to produce steel wire samples to be used for laboratory purpose (for example to produce samples for the tensile test).
Wire sample machines manufactured by Promostar are single unit able to straight sample of the steel wire after the hot rolling, cold rolling or stretching process.
Technical specifications
| Working Speed (max) | 13 m/min |
|---|---|
| Wire diameter | 8 ÷ 25 mm |
| Wire quality | low carbon wire rod |
| Length of the sample | half spiral (~ 1,5 meters) |
| Radius of curvature of the sample | 600 ÷ 700 mm |
| Temperature of the sample | ambient temperature |
Final products
Our wire sample machine is the following:

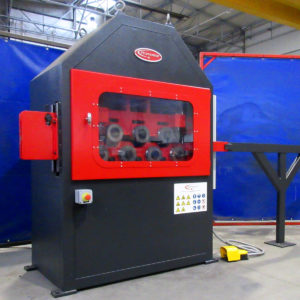

WIRE STRAIGHTENING MACHINE FOR CUT TEST
In the wire sample straightening machine, the sample of the wire to be straightened is taken cutting a portion of wire, downstream of the plain wire winding production.

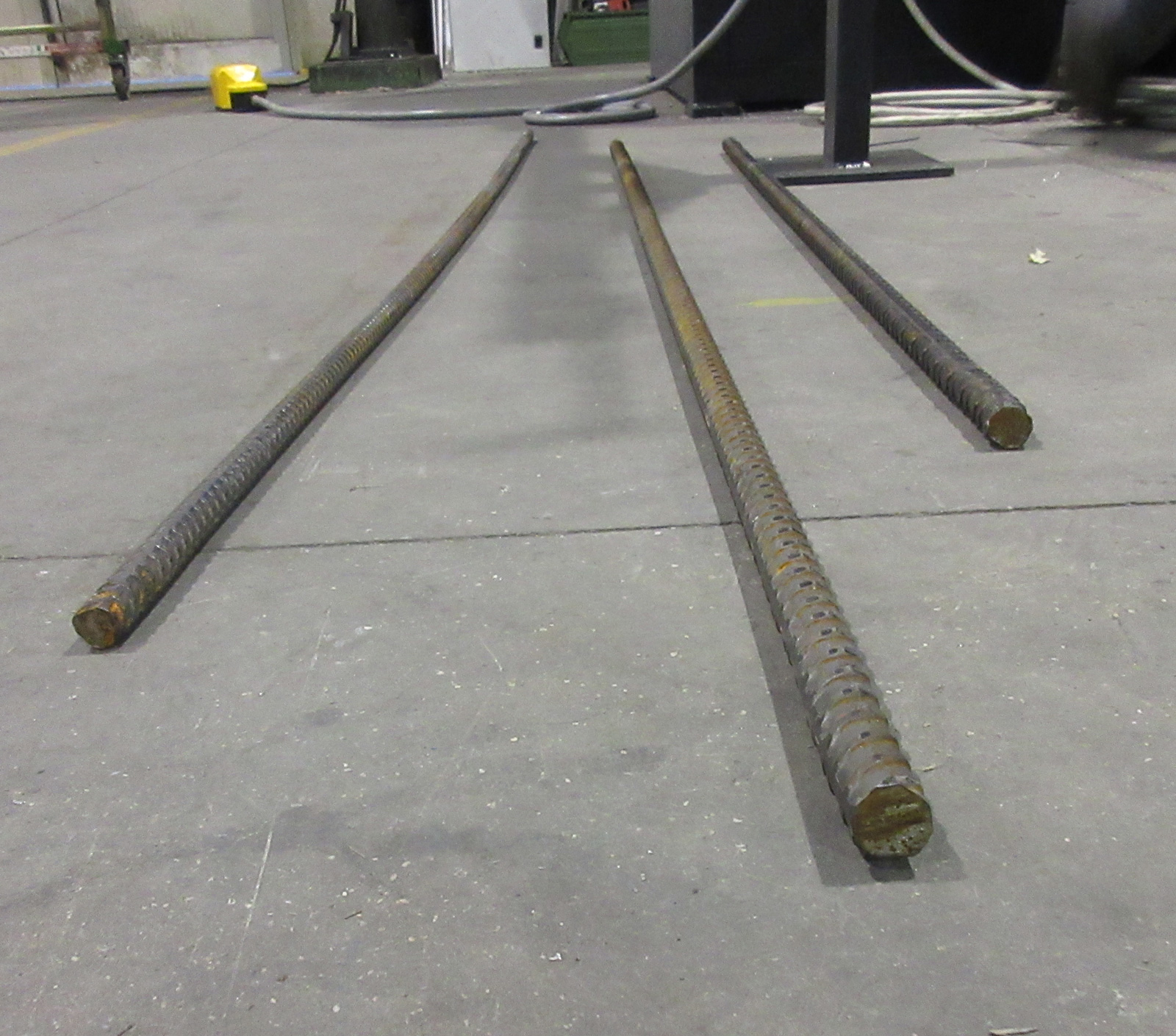

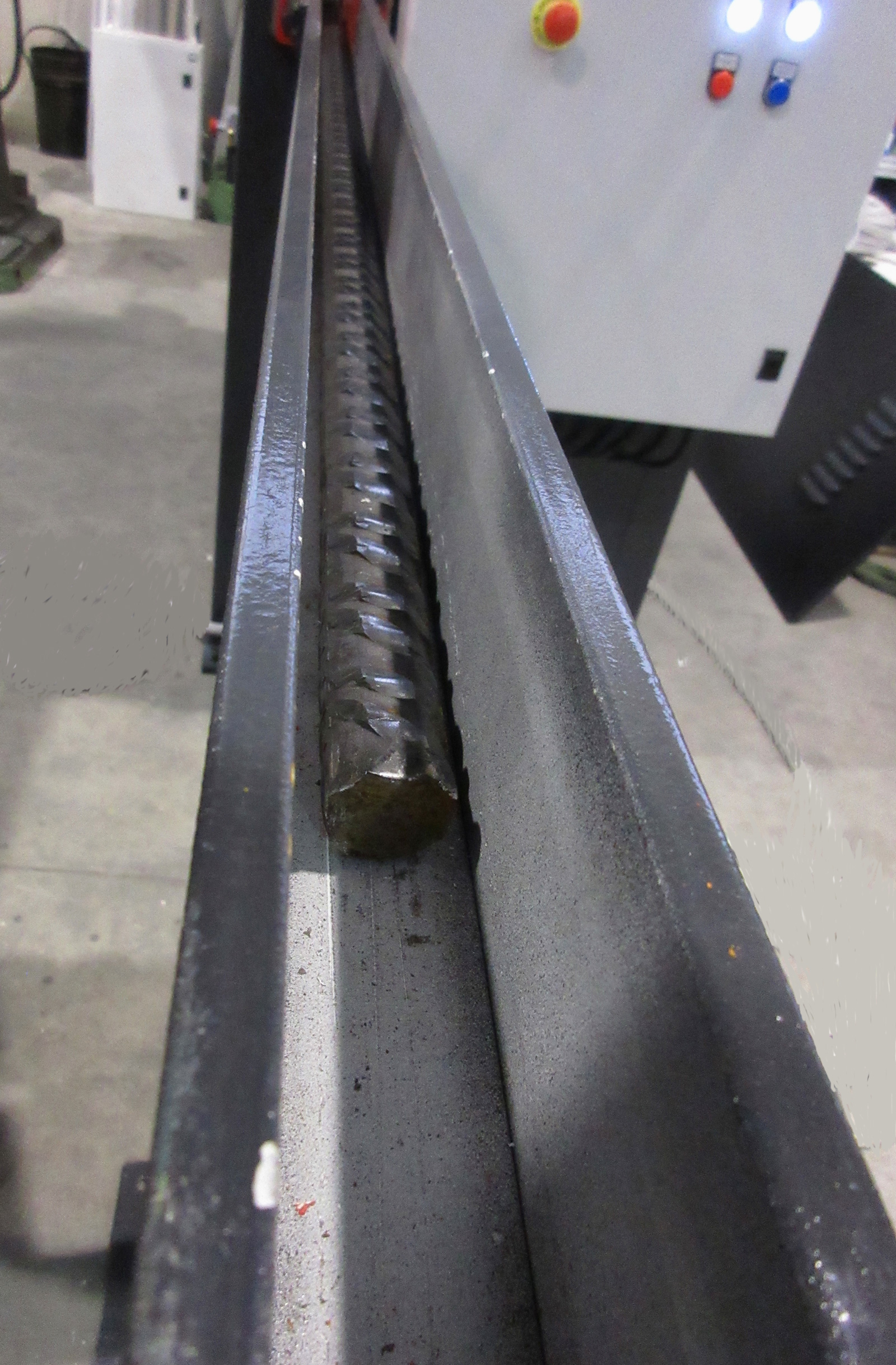

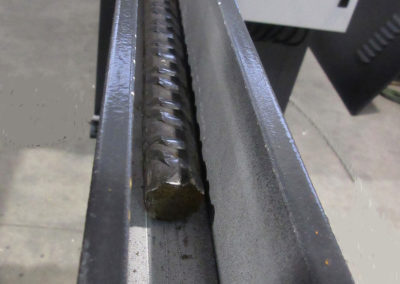

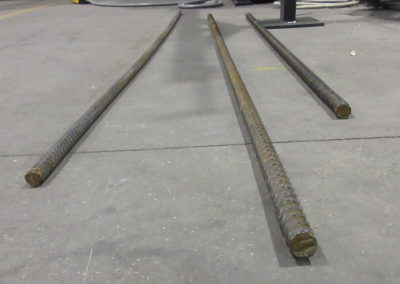

Then, the sample is loaded in our machine, that, thanks to an alternate process of straightening made with motorized and idle rolls, produce straight bars ready to be used for the laboratory machines.
Normally, the pieces produced, are used to feed the tensile test equipment’s to check the mechanical properties of the ribbed wire rod produced in the hot rolling mill process but can feed any kind of machine that requires the use of straight bars of wire material.
For further information on these machines please click on the link above.
